63-82 AC VALVES : POA, STV, VIR

AC PARTS are NOT RETURNABLE if the Factory Seal is Broken or they have been Installed.

See --- AC VALVES ----------------------------------------  Part # A 63-72 EXPANSION VALVE this quality Delco part includes the sensor tube 9218170   63-72 EXPANSION VALVE PUTTY SEAL NOS Wraps around the upper evap core pipe to insulate the expansion valve capillary sensor. You'll recognize this putty as that "dirty" black lump wrapped around the evap core pipe. 8846178 B 63-66 STV REPAIR VALVE ONLY this diaphragm repairs most leaking valves; It is not needed if the STV conversion kit is ordered. 9218181   63-66 STV VALVE 4 PIECE MTG KIT includes 2 nuts to & 2 screws to mounts the STV to the mounting bracket to the evap case. Does 1 car. 8848168

--- 63-66 STV CONVERSION KIT -----------------------------------------------------

Part #

This kit eliminates the problems inherent with an original STV: i.e. a leaking diaphragm and/or sticking piston. It converts the STV to the reliable CCOT valve (cycling clutch valve) as used on newer models & is compatible with all types of freon. If you want to really be COOL, this is the answer to STV unreliability. If you want to be original it will not be accepted by CRS or Bloomindale judges. Includes all the necessary parts & instruction.

9218183

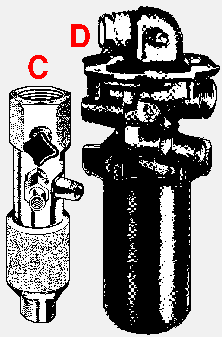

See --- AC VALVES ------------------------------------------  Part # C 67-72 POA VALVE this quality Delco part is a replacement for long ago discontinued original style valves. 9218180 - 67 POA VALVE 3 PIECE MTG KIT includes 2 nuts & 1 indented hex washer head screw to mount the POA valve to the mounting clamp & to the evap case. Does 1 car. 8848170 - 67-72 POA SCREW OFF CAP 8848174 - 68-72 POA VALVE SCREW this indented hex washer head screw mount the POA valve to the mounting clamp & to the evap case. Does 1 car. 8848172 D 73-E77 VIR VALVE Re-manufactured by Delco. Late 77 use Dryer Accumulator 9218182  - VIR VALVE SIGHT GLASS REPAIR KIT includes lens, gasket & retainer NOS 9218174 - 73-E77 VIR VALVE 3 PIECE MTG KIT includes 2 indented hex washer head screw & 1 U-nut to mount the VIR valve to the mounting bracket & to the evap case. Does 1 car. 8848176

Additional AC PARTS...

CONDENSERS <> COMPRESSOR <> DRIERS <> EVAPORATORS <> FITTINGS & TUBES <> MUFFLER <> RELAY <> RESISTOR <> SWITCH <> WATER VALVE
