Dr REBUILD's Corvette 63-82 AC Compressor & Mount

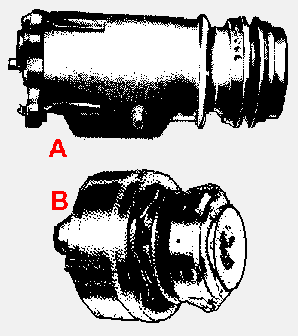

See  Delco AC Compressors-------------- Part # A 63-Early 76 COMPRESSOR with CLUTCH Genuine Delco, Rebuilt by Delco. approximately 12" long. Select   63-76 without hole for the superheat switch 9220050   72-74 with hole for the superheat switch 9220049   63-76 CLUTCH COIL & HOUSING 9220051 B Late 76-82 COMPRESSOR with CLUTCH New DELCO approximately 8" long. 9220052   76-82 CLUTCH COIL & HOUSING 9220053

---COMPRESSOR HARDWARE MOUNT KITS Include all the hardware required to mount the AC compressor and the mounting brackets to the engine. * GRADE 8 hardware as required. Does 1 car.   AC MODEL --------------- Part # -  AC MODEL --------------- Part # 64-69 250, 300 HP 27 Piece Kit 9220122 66-67 427 35 Piece Kit 9220128 66-69 350, 365 HP 31 Piece Kit 9220124 68-74 427/454 22 Piece Kit 9220130 70-Early 76 350 28 Piece Kit 9220126 79-81 Metric 20 Piece Kit 9220134 Late 76-78 Non-Metric 21 Piece Kit 9220132 82 Metric 20 Piece Kit 9220136

64-Early 76 Small Block 327 Or 350 AC Compressor Mounting Brackets See   LOCATION --------------- Part # C FRONT SUPPORT Cast Iron 9220105 D REAR SUPPORT Cast Iron NOS 9220106 E FRONT ADJUSTER Stamped Steel 9220107 F REAR BRACKET Stamped Steel 9220108 G REAR STEEL SHIM Use as reqd 9220109

66-74 Big Block 427 Or 454 AC Compressor Mounting Brackets See   LOCATION --------------- Part # H FRONT BRACKET Cast Iron NOS 9220110 I REAR BRACKET Cast Iron NOS 9220111 J FRONT ADJUSTER BRACKET Steel NOS 9220112

Late 76-82 Small Block 305 Or 350 AC Compressor Mounting Brackets See   LOCATION ------------------------------------ Part # K 76-82 LOWER SUPPORT to exhaust manifold. Requires following Metric bolt 9220114 L 76-82 Metric PIVOT BOLT must be used with the above mounting bracket 9220117 M 76-81 FRONT LOWER BRACE & BELT GUARD mounts between the lower support & block 9220119 N 76-82 REAR ADJUSTMENT BRACKET mounts upper rear compressor to block 9220115 O 76-82 UPPER BRACE mounts between the intake & the rear adjustment bracket 9220120

Additional AC PARTS...

CONDENSERS <> DRIERS <> EVAPORATORS <> EXPANSION VALVE FITTINGS & TUBES <> MUFFLER <> POA VALVE <> RELAY <> RESISTOR <> STV VALVE <> SWITCH <> VIR VALVE <> WATER VALVE
