DocRebuild's Wiring Guides are just
 oOSOEZ*

EARLY 77 has the factory Alarm Key Switch mounted in the side of the left front fender

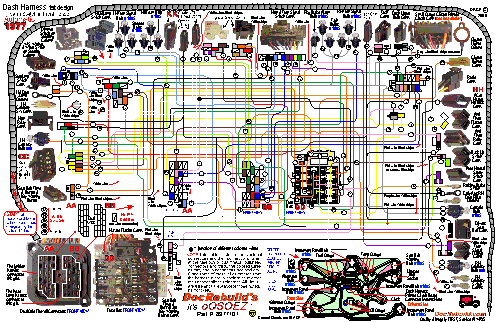

Early 1977 Automatic Dash Harness (below) Part # 8977101
 Buy it Now

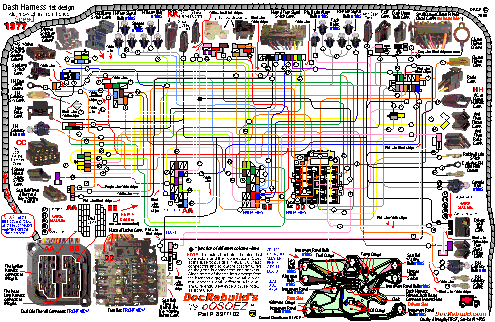

Early 1977 4 Speed Dash Harness (below) Part # 8977102
 Buy it Now

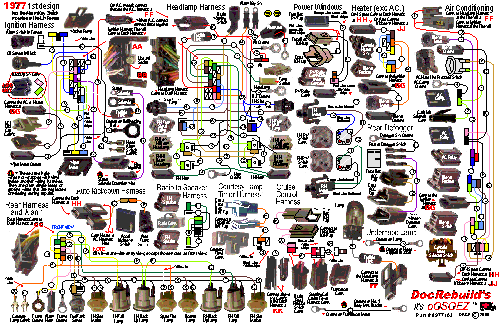

Early 1977 Harness: Ignition, AC, PW, Headlamp, Rear, Rear Defogger, Heater, Auto Trans, Alarm, Radio to Speaker, Seat Belt, Courtesy Lamp Timer, Underhood Lamp, Idle Solenoid, Cruise (below) Part # 8977103
 Buy it Now



LATE 77 has the Alarm Key Switch mounted in the left drivers door lock cylinder - coming Spring 2010
Late 1977 Dash Harness (below) Part # 8977104 - coming Spring 2010
Late 1977 Harness: Ignition, AC, PW, Headlamp, Rear, Rear Defogger, Heater, Auto Trans, Alarm, Radio to Speaker, Seat Belt, Courtesy Lamp Timer, Underhood Lamp, Idle Solenoid, Cruise (below) Part # 8977105 - coming Fall 2009



back to oOSOEZ


HOME


   you will not find these at ecklers or zip
