REBUILD's Corvette 53-82 Tie Straps |
| - |
- MODEL |
PART # |
| A |
53-57 COPPER STRAP with OVAL END
| Use as required on windshield washer hoses & wire harnesses. |
 |
2259100
|
| B |
58-60 COPPER STRAP with SQUARED END
| Use 5 on windshield washer hoses. Use 4 on wiring harnesses. |
 |
2259101
|
| C |
58-62 WHITE PLASTIC TIE STRAP
| Use 1 on wiper switch cable. Use 2 on 61-62 horn wires. |
 |
2259301
|
| D |
61-62 SHORT
ALUMINUM TIE STRAD
| Use 4 on wiring harnesses. Use 6 on windshield washer hoses. Use 1 on
expansion tank hose. |
 |
2259300
|
| E |
61-EARLY 65
LONG ALUMINUM TIE STRAP
| Use 1 on 61-62 heater hoses. Use 2 on 63-Early 65 heater hoses, prior
to March 19, 1965. |
 |
2259302
|
| F |

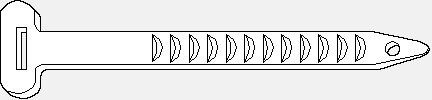

63-64 WHITE
PLASTIC 5" T STYLE STRAP
| Use 1 on fuel overflow hose. Use 5 across the firewall. |
 |
2259201
|
| G |
63-73 PUSH-IN
STYLE BLACK STRAP
| Use 8 on 63-67 LH & RH inner fender skirts. Use 1 on 63-67 battery
shield. Use 1 on 68-73 expansion tank hose. |
 |
2259203
|
| H |
65-74 BLACK
PLASTIC 5" T STYLE STRAP
| Use 1 on 65-69 fuel overflow hose. Use 2 on 70-74 fuel overflow hose.
Use 4-6 on 68-84 head lamp & wiper vacuum hoses. Use 1 on AC compressor
wires. Use 5 across 65-67 firewall. |
 |
2259202
|
| I |
66-69 &
77-82 3" PUSH-IN TIE STRAP
| Use 1 on 66-69 427 radiator overflow. Use 1 on 68-69 LH to RH hood release
cable. Use 1 on 77 top ignition shield. |
 |
2259204
|
| J |
63-67 &
69-75 7" T STYLE STRAP
| Use 2 on 63 heater hoses pre December 3,1962. Use 1 on 63-67 AC dash
control cables. Use 1 on RH smog hose to heater hose. Use 2-7 on 69-75 head
lamp & wiper vacuum hoses. Use 1 on AC heater vacuum hoses to freon
hose. Use 1 on RH smog to PCV hose. |
 |
2259212
|
| K |

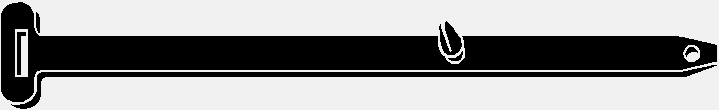

74 BLACK PLASTIC
11'' T STYLE STRAP
| Use 2 on 454 AC heater hoses. |
|
2259214
|
