REBUILD's Corvette BUMPER CUSHION, SEAL, SHIM |
| We have a complete selection of authentic material
and patterns. |
 |
| |
MODEL |
Part # |

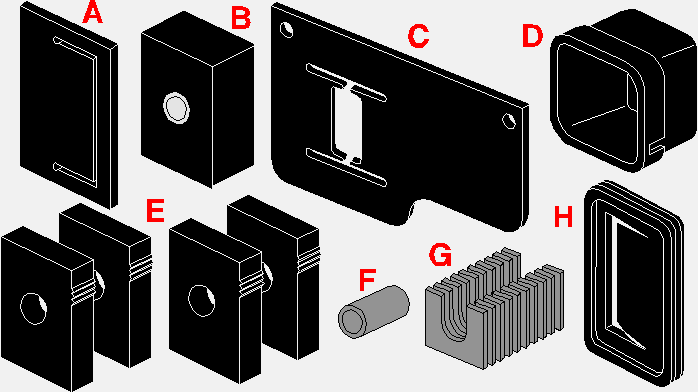

| A |
53-57 REAR BUMPER BRACKET to FRAME SEAL Die cut correct pattern thick
sheet rubber; glued to the body where the bumper brackets pass thru the
trunk. Does 1 car. PAIR |
7833103 |
| B |
56-57 REAR BUMPER MTG CUSHION 8 PIECE SET with 4 spacers. Does 1 car. |
7833105 |
| C |
58 REAR BUMPER BRACKET to FRAME SEAL Die cut correct pattern thick sheet
rubber; mounted to the body where the brackets pass thru the trunk. Does
1 car. PAIR |
7833104 |
| D |
58-60 REAR BUMPER MOUNTING SEAL 4 reqd. Repro SEAL |
7833110 |
| E |
58-62 BUMPER MOUNTING CUSHION 4 PIECE SET extruded from firm rubber,
exact down to the RAISED RIBS on the surface. 58-62 FRONT use 1 Set. 58-60
REAR use 1 Set. |
7833108 |
| F |
58-62 FRONT or REAR CUSHION SPACER Zinc plated tubular steel; use 1 spacer
for every 2 of the above cushions. |
7833106 |
| G |
58-62 BUMPER SHIM 10 PIECE KIT "U"
shaped slotted steel; use on the front or rear bumpers as required. |
7833120 |
| H |
58-62 FRONT BUMPER BRACKET SLOTTED SEAL Molded rubber with a slit to
allow passage of the bumper brace plus a groove to mount in the fiberglass
inner skirt. 2 reqd. |
7833107 |
| J |
63-67 REAR BUMPER SHIM 10 PIECE SET These
double slot Zinc plated shims are crucial for preventing damage to the fiberglass
body and the paint. Without them you cannot tighten the rear bumper bolts.
Contrary to mistaken information elsewhere, they are authentic parts as
shown in every 63-67 Assembly Manual. |
7836119 |
| K |
68-72 FRONT BUMPER OUTER SHIM 8 PIECE SET Mount between the outer bumper
brackets extension & the outer ends of the front bumper. |
7836122 |
| L |
EARLY 68 BUMPER BRACE SEALS without NOTCHES Die cut textured surface
sheet rubber. PAIR. Mounts to the inner fender skirts to seal the bumper
bracket openings with 12 Staples. |
7833115 |
| EARLY 68 is prior to February
9, 1968 production date approx. VIN # 11,088. LATE 68 is after. |
| M |
LATE 68-72 BUMPER BRACE SEALS Die cut textured surface sheet rubber.
PAIR. Mounts to the inner fender skirts to seal the bumper brackets openings
with 12 Staples. |
7833116 |
| N |
73-79 FRONT BUMPER BRACE SEALS Die cut textured surface sheet rubber.
PAIR. Mounts to the inner fender skirts to seal the bumper bracket openings
with 12 Staples. |
7833117 |
|
