Dr REBUILD's Corvette Parts | ||||||||||||||||||||||

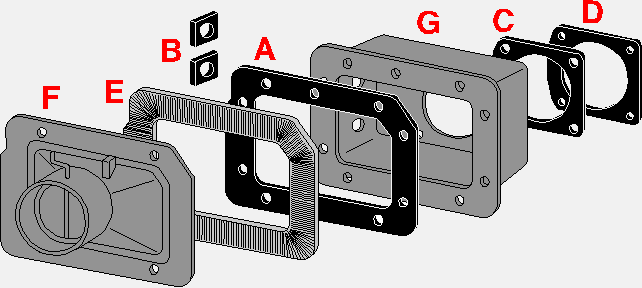

-56-62 Heater Box Seal Kits select from TWO KITS... | ||||||||||||||||||||||
Model | Includes | Part # | ||||||||||||||||||||
56-62 | A+2B+C | 8844500 |
|
4 pieces | ||||||||||||||||||
56-62 | A+2B+C+D | 8844106 |
|
5 Pieces | ||||||||||||||||||
|
Description | |||
E | 56-62 OUTER FIREWALL COVER SEALER |
8841398 | |
F | 58-62 OUTER HEATER COVER w/ Fresh Air Door & Shaft |
8841400 | |
58-62 INNER HEATER CORE BOX Hand Laid Fiberglass |
8841401 | ||
58-62 OUTER HEATER COVER 12 PIECE MOUNT KIT |
8841398 | ||
56-62 HEATER FRESH AIR HOSE O.E.M. shown above |
| ||
|
8852115 | ||
8852618 | |||
56-62 DEFROSTER BOX 7 PIECE MOUNT KIT |
8852116 | ||
56-62 DEFROSTER HOSE to BOX MOUNT BRACKET |
8852117 | ||
8852105 | |||
56-62 DEFROSTER & HEATER CABLE PUSH ON NUTS |
8852114 | ||
56-62 DEFROSTER CABLE to BOX "S" CLIP |
8852113 | ||
8852110 | |||
58-62 DEFROSTER BEZEL Primered, paint as reqd, 2 reqd |
8852111 | ||
56-62 DEFROSTER BEZEL 8 PIECE MOUNT KIT |
8852109 | ||
56-62 CORE HOSE 5/8" Yellow CLAMP, 4 to 8 reqd | |||
R | 4166917 | ||
58-62 HEATER CONTROL VALVE ASSEMBLY |
8850110 | ||
T | 58-62 HEATER CONTROL VALVE to CORE ELBOW HOSE thick wall without the internal cloth reinforcement as was original |
8850115 | |
- | 58-62 ELBOW HOSE 3/4" Orange HOSE CLAMP, 2 reqd |
4166917 | |
56-57 HEATER CONTROL VALVE to CORE HOSE SET |
8846004 | ||
58-62 HEATER CONTROL VALVE to ELBOW PIPE HOSE |
8846003 | ||
58-62 HEATER CONTROL VALVE COPPER ELBOW PIPE |
8846007 | ||
53-EARLY 58 RIBBED 5/8" HEATER HOSE KIT |
|||
58-62 RIBBED 5/8" HEATER HOSE KIT |
|||
X | 8846107 | ||
Y | 56-57 HEATER HOSE FIREWALL GROMMET |
8846006 | |
58-62 HEATER HOSE FIREWALL GROMMET |
8846005 |
