-DocREBUILD's Corvette 68-79 Heater Box Seal Kits
 Select from TWO KITS...
 KITS...  Includes  Part #

 BASIC

 ABCDEF + Staple wire, 30 Rivets & Detailed Instructions
 Buy it Now

 8844230

DELUXE

 ABCDEF + PSA on BCD Staple wire, 30 Rivets & Detailed Instructions
 Buy it Now

8844229

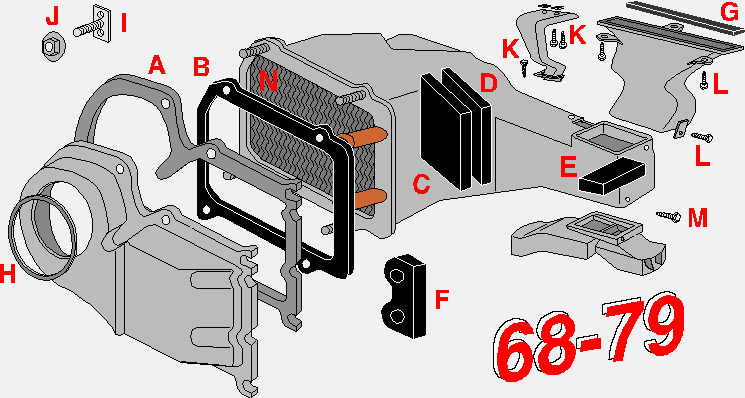

INDIVIDUAL PARTS in above kits...
- Description Dr #
A

OUTER BOX to FIREWALL SEAL

8844231

B

INNER BOX to FIREWALL SEAL

8844232
We tell the truth - Item "B" our inner firewall seal was NEVER included on any Vette by GM. Ten years ago I designed it to aid sealing the inner box to the firewall. After we cut off all sales to Zip, they began selling a kit with the same seal. I surreptitiously purchased their kit - and placed it on top of the one I designed. It was exactly the same. I wonder where they came up with this idea ? Take a guess ? William Faulkner summed it up "Imitation is the sincerest form of flattery".
C

HOT AIR DOOR SHUT OFF SEAL

8844233
D

COLD AIR DOOR SHUT OFF SEAL

8844234
E

DEFROSTER SHUT OFF SEAL

8846114
F

HEATER CORE PIPE DUEL SEAL

8844236

G
DEFROSTER DUCT to DASH SEAL

8844238

H
BLOWER MOTOR SEAL

8846140

ASSOCIATED HEATER PARTS - Not Included with SEAL KITS
Description Dr #
I 68-79 FIREWALL "T" BOLT & 2 MOUNTING RIVETS Mounts boxes; 1 used in the center of the firewall & 2 on the RH firewall. N.O.S. 8846118
J

68-79 OUTER BOX FIREWALL NUT 7 PIECE SET OEM wide flange. Does 1 car.

8846116
K

68-79 CENTER OUTLET DUCT 5 PIECE MTG KIT Includes 2 pan & 1 indented hex washer head screw, plus 2 U-nuts. Does 1 car.

8862216
L

68-79 DEFROSTER DUCT 3 PIECE MTG KIT Includes 3 indented hex washer head screws. Does 1 car.

8846146

M
68-79 LOWER "Y" DUCT MT SCREW indented hex washer head screw

8846148
- 68-77 DEFROSTER GRILL rectangular molded plastic trim, mounts in upper dash.

9222400
- 68-77 GRILL MOUNT SCREW 4 PIECE SET

8846117

N
68-79 HEATER CORE except AC Genuine Delco Not a generic replacement.

8860205

HOW TO REPAIR CRACKED HEATER or AC BOXES
