INSTALLATION TIP To create the look of a 1 piece weatherstrip when replacing only the upper post w/s or the lower pillar w/s follow these tips. Mount both the upper post and lower hinge weatherstrips to the body and fill the junction with black w/s adhesive. Cut a small piece of Saran wrap & spray one side with Silicone. Place the sprayed side over the weatherstrip & close the door. Allow to cure before removing |
 | |||||||

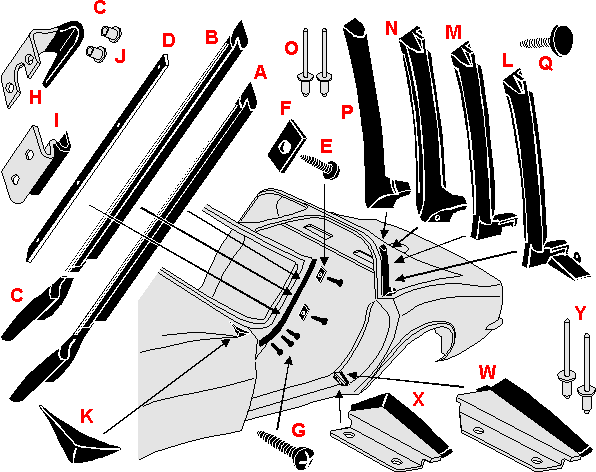

| 68-82 WINDSHIELD POST & PILLAR W/S = WEATHERSTRIPS | |||||
| A 68-72 POST & HINGE PILLAR W/S | LEFT | RIGHT | |||
| Tip When ordering the above W/S, item F is needed so the mtg screws do not pull thru the rubber | |||||
| B 68-82 WINDSHIELD POST W/S | LEFT | RIGHT | |||
| Tip When ordering the above W/S, item F is needed so the mtg screws do not pull thru the rubber | |||||
| C 68-72 HINGE PILLAR W/S ONLY | LEFT | RIGHT | |||
| D 68-82 POST W/S RETAINER MT SEAL These die cut Black sponge rubber seals prevents water leaks behind the windshield post weatherstrip retainers. Leaks in this area result in severe rust damage to the windshield frame. Does 1 car | |||||
| E 68-82 POST W/S MTG SCREW 8 PC SET These Black plated screws mount the rectangular post weatherstrip retainers. Does 1 car | |||||
| F 68-82 POST W/S WASHER 4 PIECE SET Mount the windshield post w/s with these special rectangular washers. Does 1 car | |||||
| G 68-72 HINGE PILLAR W/S MTG SCREW 4 PS SET Black plated. Does 1 car | |||||
| H 69-82 UPPER "Blow-Out" CLIP Rubber dipped steel clip. 2 reqd | |||||
| I 77-82 LOWER "Blow-Out" CLIP Black Stainless (NOT Rubber dipped) 2 reqd | |||||
| J 69-82 CLIP MTG RIVET 4 PC SET 69-76 1 set reqd ; 77-82 2 sets reqd | |||||
| WINDSHIELD LOWER FILLER W/S Seals the windshield lower corner to the side fender | |||||
| K 68-72 WINDSHIELD LOWER FILLER W/S | LEFT | RIGHT | |||
| not illustrated 73-82 LOWER FILLER W/S | LEFT | RIGHT | |||
| 73-82 LOWER FILLER MTG SCREWS Black plated screws. Does 1 car | |||||
| COUPE REAR DOOR W/S includes Embedded steel insters where required as original | |||||
| L 68-Early 69 REAR DOOR GLASS W/S EARLY 69 is used until Nov. 22, 1968 approx | LEFT | RIGHT | |||
| 68-Early 69 REAR DOOR GLASS W/S MTG SCREW SET Black plated. pair | |||||
| M Mid 69 REAR DOOR GLASS W/S - MID 69 was used from Nov. 22, 1968 to Feb. 20, 1969 approx | LEFT | RIGHT | |||
| N Late 69-77 REAR DOOR GLASS W/S - LATE 69 used after Feb. 20, 1969 approx | LEFT | RIGHT | |||
| O Late 69-77 REAR W/S MOUNTING RIVETS pair. Does 1 car | |||||
| P 78-82 REAR DOOR GLASS W/S These are the correct ones with internal steel supports, not those foreign ones that lack the inner steel. | LEFT | RIGHT | |||
| Q 78-82 REAR W/S FASTENER 6 PC SET plastic push-in style Does 1 car | |||||
| DOOR WATER DIVERTERS | |||||
| W 72-Early 79 Repro DIVERTER about 4" long | LEFT | RIGHT | |||
| W 72-Early 79 N.O.S. DIVERTER about 4" long | LEFT | RIGHT | |||
| X Late 79-82 N.O.S. DIVERTER about 3" long | LEFT | RIGHT | |||
| Y 74-82 DIVERTER MTG RIVET 4 PC SET Does 1 car | |||||
| DOOR HANDLE GASKETS die cut Neoprene rubber. one set does car. 68 is symmetrical. 69-82 is NOT. | |||||
 |
