PART # |

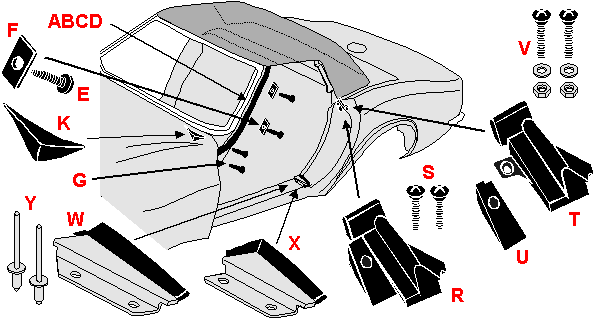

| 68-82 WINDSHIELD POST & PILLAR W/S = WEATHERSTRIPS |
| A 68-72
POST & HINGE PILLAR W/S |
LEFT |
1069508 |
|
RIGHT |
1069509 |
| Tip When
ordering the above W/S, item F is needed
so the mtg screws do not pull thru the rubber |
| B 68-82
WINDSHIELD POST W/S |
LEFT |
1069516 |
|
RIGHT |
1069517 |
| Tip When
ordering the above W/S, item F is needed
so the mtg screws do not pull thru the rubber |
| C 68-72
HINGE PILLAR W/S ONLY |
LEFT |
1069518 |
|
RIGHT |
1069519 |
| D 68-82
POST W/S RETAINER MT SEAL These die cut Black sponge rubber seals prevents
water leaks behind the windshield post weatherstrip retainers. Leaks in
this area result in severe rust damage to the windshield frame. Does 1 car |
1069504 |
| E 68-82
POST W/S MTG SCREW 8 PC SET These Black plated screws mount the rectangular
post weatherstrip retainers. Does 1 car |
1069510 |
| F 68-82
POST W/S WASHER 4 PIECE SET Mount the windshield post w/s with these special
rectangular washers. Does 1 car |
1069514 |
| G 68-72
HINGE PILLAR W/S MTG SCREW 4 PS SET Black plated. Does 1 car |
1069511 |
| WINDSHIELD LOWER FILLER W/S Seals the windshield lower corner to the
side fender |
| K 68-72
WINDSHIELD LOWER FILLER W/S |
LEFT |
1069520 |
sold out |
RIGHT |
1069521 |
| not illustrated
73-82 LOWER FILLER W/S |
LEFT |
1069522 |
|
RIGHT |
1069523 |
| 73-82 LOWER FILLER MTG SCREWS Black plated pair. Does 1 car |
1069530 |
| CONVERTIBLE REAR DOOR W/S includes Embedded steel insters where required
as original |
| R 68-Early
69 Conv. LOCK PILLAR W/S - EARLY 69 used before Aug. 22, 1968 approx. |
LEFT |
1064528 |
|
RIGHT |
1064529 |
| S 68-Early 69 LOCK PILLAR W/S MT
4 PC KIT Black plated screws. Does 1 car. |
1069530 |
| T Late
69-75 Conv. LOCK PILLAR W/S - LATE 69 is after Aug. 22, 1968& uses an
auxiliary wedge |
LEFT |
1069532 |
|
RIGHT |
1069533 |
| U Late 69-75 Conv. Lock Pillar WEDGES
LH & RH molded Black plastic used with the above weatherstrips. Does
1 car. |
1069535 |
| V Late 69-75 WEATHERSTRIP &
WEDGE 12 PC SET Black screws. Does 1 car |
1069531 |
| DOOR WATER DIVERTERS |
| W 72-Early 79 Repro DIVERTER about
4" long |
LEFT |
1064572 |
|
RIGHT |
1064573 |
| W 72-Early 79 N.O.S.
DIVERTER about 4" long |
LEFT |
1064563 |
|
RIGHT |
1064564 |
| X Late 79-82 N.O.S.
DIVERTER about 3" long |
LEFT |
1064565 |
sold out |
RIGHT |
1064566 |
| Y 74-82 DIVERTER MTG RIVET 4 PC
SET Does 1 car |
1069562 |
| DOOR HANDLE GASKETS die cut Neoprene rubber. one set does car. 68 is
symmetrical. 69-82 is NOT. |
|
68
ONLY |
1051568 |
|
69-82 |
1051549 |
